AP Upgrade Report

The AP Upgrade Status Report provides summary statistics over the reporting period and the progress status of the AP upgrade request. View information on the AP group or drill down to view the status of each individual AP in the group.

The AP group is identified by the Upgrade Request Time. Each request is considered a group. A group must consist of APs that support the same firmware version. For example, currently all AP39xx series APs support firmware version: 10.51.15.0002.img and all 11ax APs support firmware version: 7.5.0.0-005R.img.

Each ExtremeCloud IQ Controller release includes default AP firmware versions for the supported APs. You can install additional firmware versions if necessary. Before initiating an AP Upgrade Request, verify that the AP firmware is installed on ExtremeCloud IQ Controller.

For each group, the report displays the upgrade status percentage, the estimated completion time, and the actual completion time. To display this same information for each AP in the group, select the group.
Click to expand in new window

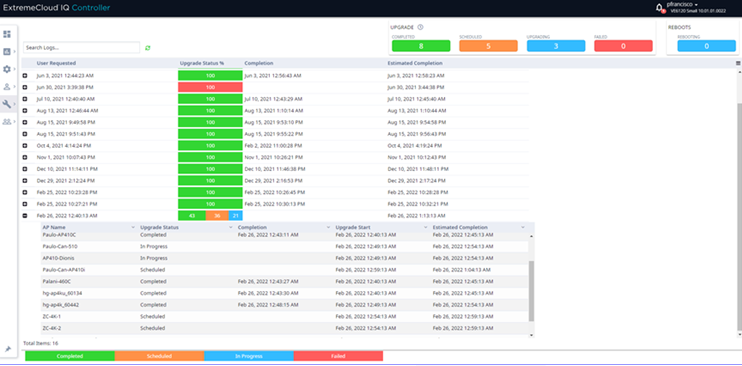

AP Upgrade Report
AP Upgrade Report. Color-coded with status percentage of each upgrade request group.
The AP upgrade status is color coded:
  • Green indicates the percentage completed.
  • Mustard indicates the percentage scheduled.
  • Blue indicates the percentage in progress.
  • Red indicates the percentage failed.
The AP Upgrade Status Report is available on the following workbenches:
  • Administration — Go to Administration > System > Software Upgrade. Scroll down to AP Images and select Upgrade Status.
  • Tools — Go to Tools > AP Upgrade Reports.
    Note

    Note

    Advanced Query and filtering from the Logs workbench are not available for the AP Upgrade Report.

    The AP Upgrade Request does not provide a history of upgrades. If multiple upgrades are requested for the same AP, only the most recent upgrade request is shown. To view event information for the AP Upgrade Request, configure the System Log Level to Information. Go to Administration > System > Logs.

    Select to configure the column display, refresh the display, or export the data in .csv.

9038996-00 Rev. AB
